TL6D-type high-precision intelligent measurement and control instruments Patented product, patent number: ZL 2014 2 0769522.3 Instrument uses aluminum alloy shell and anti-jamming components, with good anti-jamming performance. 1. Instrument power: 100V-240V AC. 2 working environment: 0 ℃ -50 ℃, humidity less than 90% RH, no frost. 3.10 times / second, 60 times / second sampling speed (switchable). Basic error ± 0.02% F.S, display range -199999-999999. 4. With resistance strain gauge load cell, suitable for measurement and control. 5 key operation mode. 5. Output excitation voltage 5V, the current is about 200mA. 6. Gross, net, peak, valley, zero tracking, one-touch zeroing and other functions. 7. High-precision transmission output (4-20mA, 0-5V, 0-10V). 8.4 relay output. 9. Support RS232 or RS485 communication (ModBus RTU). 10. Support TG ONE data acquisition management software. 11. Dimensions: 160 * 80 * 180 (aluminum alloy shell), hole size 152 * 76.

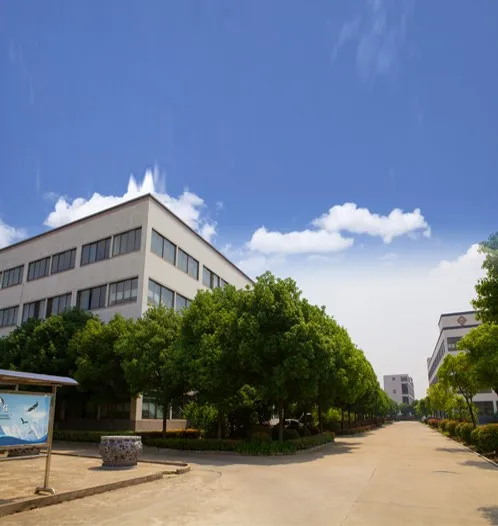

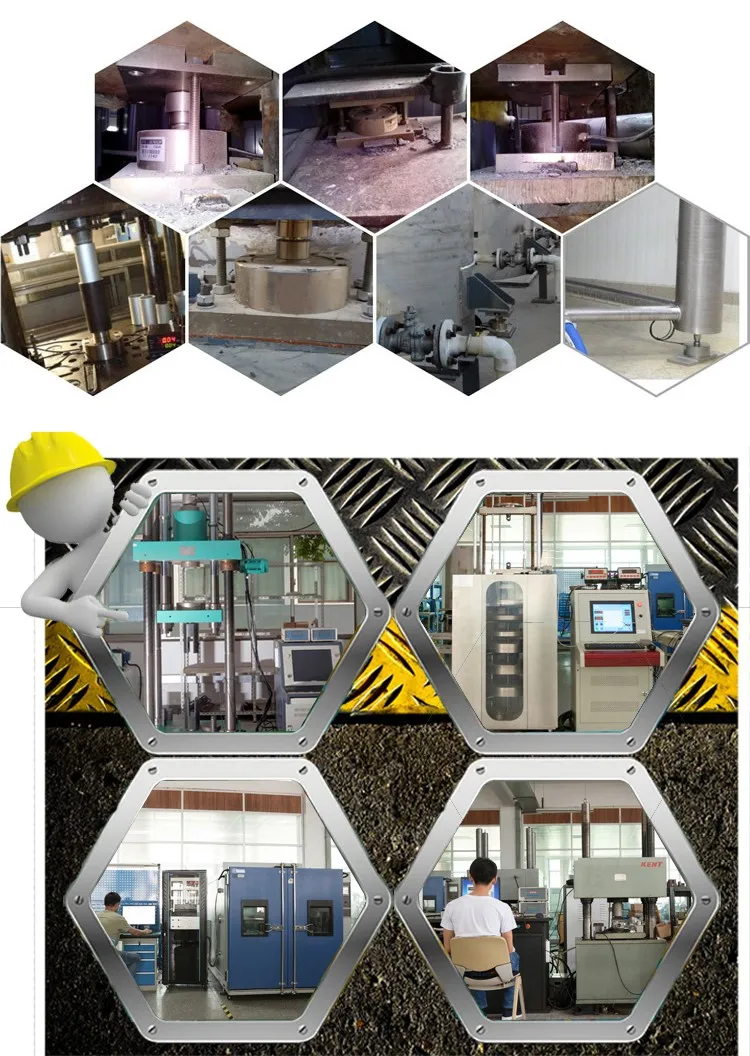

Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 20 years Skylight constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military , Semiconductor and other industries in the measurement and automation testing, the semiconductor strain gauge production technology, equipment and production for the leading domestic, has applied for invention patents.
